wolfer電機廣泛應用于起重設備,造船設備,功率從2.2KW-2000KW
Wolfer經過65年的制作研發,Wolfer已經研發和生產的電動馬達廣泛地用于起重設備,在和船舶上以及在一般機械工程。我們運用我們的廣泛知識生產高效電動機相適應的激勵機制的解決方法。在我們的工作地點在Osnabruck員工努力工作以確保達到質量標準。客戶遍布世界各地的人相信的表現能力,增強肌膚緊實度、動力學和高度的高效率的創新產品。 電機生產過程中的提升人類的確是世界領先的生產商之一有關質量以及技術。

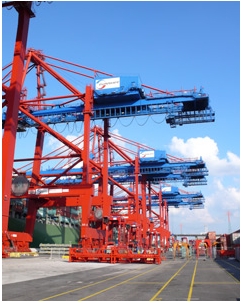

Hoisting equipment Three phase asynchronous motors made by Wolfer stand out on account of their robust design and their very high performance capacity. They are individually manufactured in accordance with our customers' requirements. The use of special rotors with appropriately adapted geometry makes it possible to achieve excellent control qualities. A high pull out torque guarantees safe operation in the field weakening. On account of their low moment of inertia, these highly dynamic drive motors have the advantage of shorter acceleration time combined with reduced frequency converter current. Consequently smaller frequency converters and reduced cable cross sections can frequently be used. Nominal voltages up to a maximum of 690 volts as well as frequencies and rated speeds are freely selectable for our motors, providing physical and mechanical limit values are observed. Special insulations and special winding wires are used which are almost completely resistant to partial discharges which ensue in frequency converter operation. Many different kinds of control and protection equipment are also available. Furthermore, it is also possible to integrate holding brakes, separately driven fans and other components. All the motors have excellent regulation properties which also mean low life-cycle costs.
由三相異步電動機Wolfer脫穎而出的緣故,他們精湛的設計和他們的超高性能的能力。他們是單獨制造符合我們客戶的需求。采用特殊轉子幾何與適當?shù)母木幨沟盟軌驅崿F(xiàn)良好的控制品質。高拉出扭矩安全運行提供保障在田間弱化。由于低慣性矩的,這些高度動態驅動馬達擁有優勢較短的加速時間結合減少變頻器電流。因此較小的頻率轉換器和降低電纜截面經常不被使用。 名義上的電壓,最多不超過6,900伏特以及頻率和額定速度對我們自由的馬達,可提供物理力學限制價值觀是觀察到的現象。特殊絕緣和特殊的繞組線使用幾乎被完全抵抗局部放電,產生對變頻器運行。許多不同種類的控制和保護設備也可。此外,它也有可能來整合控股制動器,分別驅動風扇和其他組成部分。所有的電動機有良好的調節性能也意味著低壽命周期成本。
Three-phase asynchronous motors – squirrel cage and slipring motors range of power: 2.2 to 2000 kW frame sizes 100 to 560 in conformity with IEC types of protection IP 23 to IP 56 nominal voltage up to 690 V in 4-, 6-, 8- or 10-pole design designs: all in conformity with IEC standard types of cooling: self-ventilated, separately ventilated, without ventilator, heat exchanger.
造船 我們的緊湊而建造使用特殊電機在極端壓力條件在船舶工業,特別是對于弓和嚴厲的推進器在集裝箱船和集裝箱能力超過5000個標準箱。他們比賽的規則,履行所有著名船級社的要求,并說服絕緣等級為F由他們的優化能量平衡。也可提供這些電機熱交換器。此外控股的剎車,分別驅動的球迷,以及加熱器和其他元件可以另外綜合。 松鼠籠電機等弓或者嚴厲的推進器 啟動程序的最佳利用。 star-delta-start, 開始transformator 變頻器 推薦了一個隔離軸承電機變頻運行。 電動機啟動或弓式推進器 利用電阻調速可以關掉 起重機電機血管 開始特點進行 優良的控制特點,也是在高距離的速度 低慣性矩的 Winchmotors 變頻器調速的頻率 保護IC410 IP56,類型的冷卻 配有剎車和編碼器為境外申請
